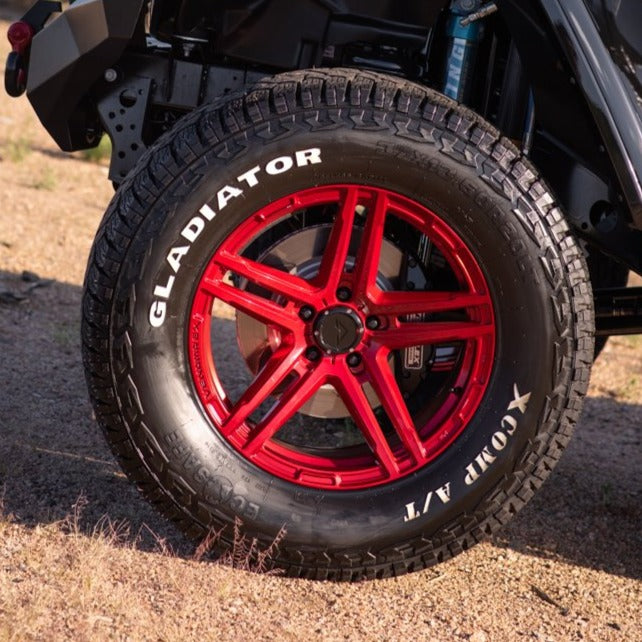

X Comp A/T
A/T FEATURES AND SIDEWALL DESIGN
• THE X COMP A/T DELIVERS THE RELIABILITY AND HIGH PERFORMANCE FOR DAILY DRIVING.
• SUPERIOR ENGINEERING AND CONSTRUCTION GIVES THE A/T THE VERSATILITY TO BE DRIVEN AGGRESSIVELY ON ANY TERRAIN.
• THE A/T IS VERY QUIET WITH A SMOOTH CONTROLLED RIDE, BOTH ON AND OFF ROAD.
• 50,000 MILE WARRANTY (55,000 FOR P METRIC SIZES)
• 3 PEAK SNOW RATED!
| Tire Sizes | Ply Rating | Load Index (S/D) | Speed Symbol | Tread Depth (32nds) | Overall Diameter (In) | Section Width (In) | Load Capacity (S/D) LBS |
|---|---|---|---|---|---|---|---|
| LT245/75R16 | 10 | 120/116 | S | 15 | 30.5 | 9.8 | 3085/2755 |
| LT265/75R16 | 10 | 123/120 | R | 15 | 31.7 | 10.5 | 3415/3085 |
| LT285/75R16 | 10 | 123/120 | Q | 16 | 32.8 | 11.3 | 3750/3415 |
| 33X12.50R17LT | 10 | 126 | Q | 16 | 32.5 | 12.5 | 3750 |
| 35X12.50R17LT | 10 | 126 | Q | 16 | 34.5 | 12.5 | 3750 |
| 37X13.50R17LT | 10 | 131 | Q | 16 | 39.5 | 13.6 | 4300 |
| 40X13.50R17LT | 10 | 131 | Q | 16 | 39.5 | 13.6 | 4300 |
| LT235/80R17 | 10 | 120/117 | R | 15 | 31.8 | 9.3 | 3042/2835 |
| LT245/75R17 | 10 | 121/118 | S | 15 | 31.5 | 9.8 | 3195/2910 |
| LT285/75R17 | 8 |
121/118 |
S |
16 |
33.9 |
11.3 |
3195/2910 |
| LT315/70R17 | 10 |
121/118 |
S |
16 |
34.4 |
12.7 |
3195/2910 |
| P265/70R17 | - | 113 | S | 13 | 31.7 | 10.7 | 2535 |
| LT265/70R17 | 10 | 121/118 | S | 16 | 31.7 | 10.7 | 3195/2910 |
| LT285/70R17 | 10 | 121/118 | Q | 16 | 32.8 | 11.5 | 3195/2910 |
| 33X12.50R18LT | 10 | 118 | Q | 16 | 32.5 | 12.5 | 2910 |
| 35X12.50R18LT | 10 | 123 | T | 16 | 34.5 | 12.5 | 3415 |
| LT265/70R18 | - | 154/121 |
Q |
16 |
32.6 |
10.7 |
3525/3195 |
| LT275/65R18 | 10 | 123/120 | Q | 16 | 32.1 | 11.0 | 3415/3085 |
| LT275/70R18 | 10 |
125/122 |
S |
16 |
33.2 |
12.5 |
3640/3305 |
| LT285/65R18 | 10 |
125/122 |
S |
16 |
34.3 |
12.5 |
3640/3305 |
| LT295/70R18 | 10 | 129/126 |
S |
16 |
36.5 |
12.5 |
4080/3750 |
| 33X12.50R20LT | 10 | 114 | Q | 16 | 32.5 | 12.5 | 2600 |
| 35X12.5020LT | 10 | 121 | T | 16 | 34.5 | 12.5 | 3195 |
| 37X12.50R20LT | 10 |
127 |
Q |
16 |
36.5 |
12.5 |
3750 |
| 37X13.50R20LT | 10 | 127 | Q | 16 | 36.5 | 13.6 | 3860 |
| 40X13.50R20LT | 10 | 128 | Q | 16 | 39.5 | 13.6 | 3970 |
| LT265/60R20 | 10 |
121/118 |
S |
16 |
32.5 |
10.7 |
3195/2910 |
| P275/55R20XL | - | 117 | T | 13 | 31.9 | 11.2 | 2835 |
| LT275/55R20 | 10 |
120/117 |
S |
16 |
31.9 |
11.2 |
3085/2835 |
| LT275/65R20 | 10 | 126/123 | S | 15 | 34.1 | 11.0 | 3750/3415 |
| LT285/55R20 | 10 | 122/119 | Q | 16 | 32.4 | 11.7 | 3305/3000 |
| LT285/65R20 | 10 | 127/124 | Q | 16 | 34.6 | 11.5 | 3860/3525 |
| LT295/65R20 | 10 |
129/126 |
S |
16 |
35.1 |
11.8 |
4080/3750 |
| LT305/55R20 | 12 |
125/122 |
Q |
16 |
33.2 |
12.4 |
3640/3305 |
| LT325/60R20 | 10 |
126/123 |
R |
16 |
35.4 |
13.0 |
3750/3415 |
| P285/45R22XL | - | 114 | H | 13 | 32.1 | 11.2 | 2601 |
